What is DOT C2 Reflective Tape? – Definition of specification certification

< Back

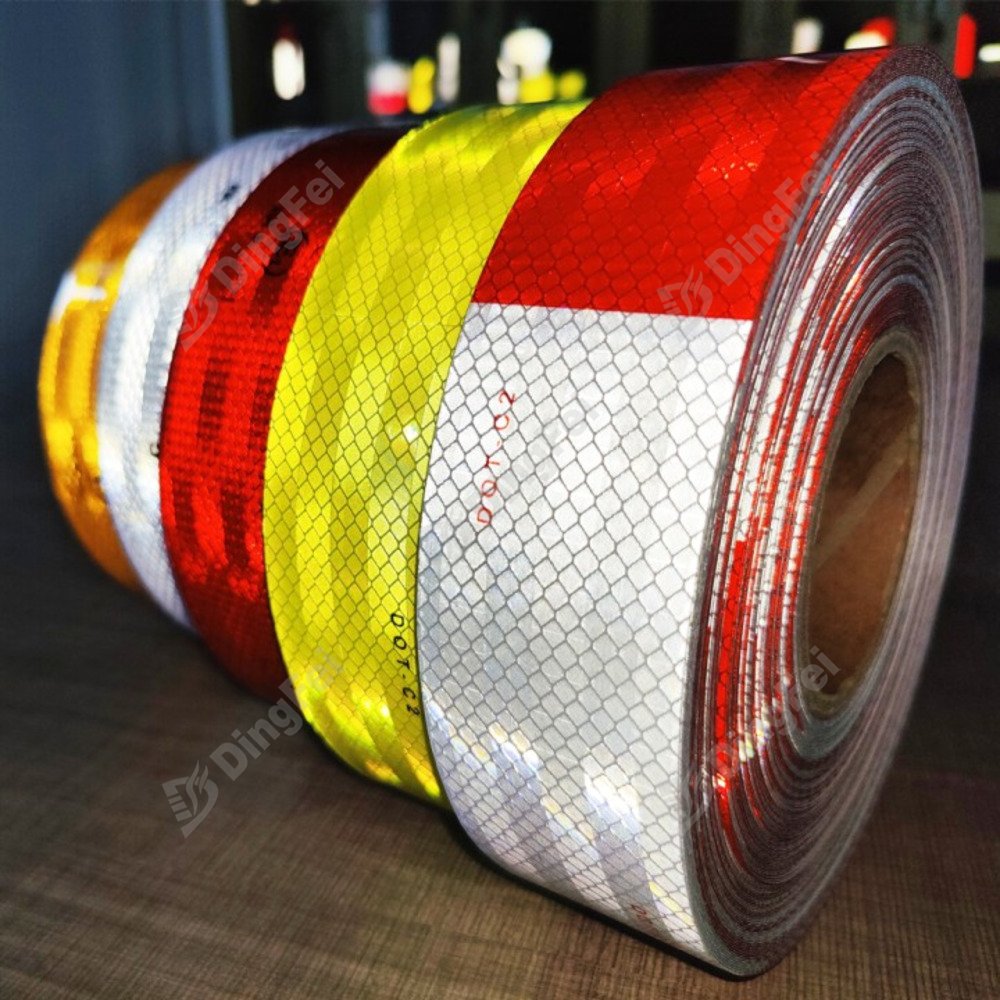

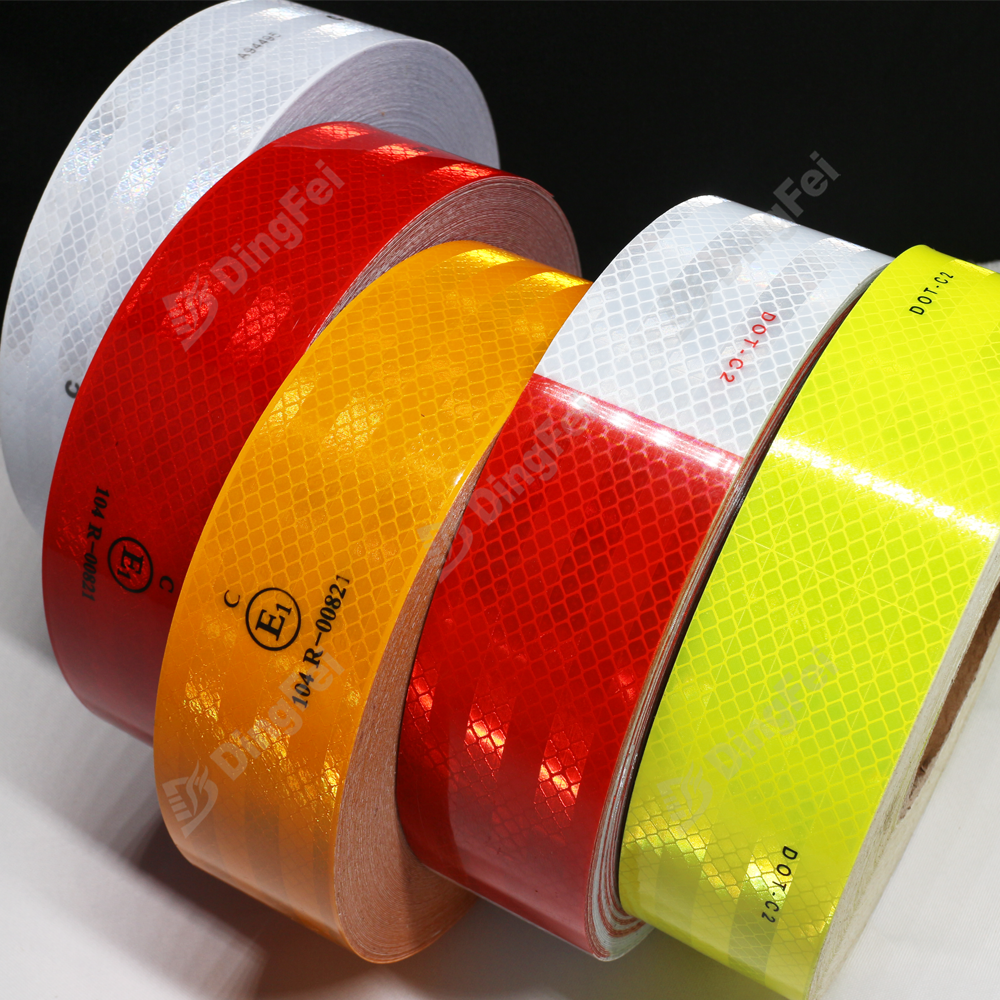

The National Highway Traffic Safety Administration (NHTSA) issued a final ruling requiring that trailers manufactured on or after December 1, 1993 have an overall width of 80 inches or more and a gross vehicle weight rating (GVWR) in excess of 10,000 pounds, Equipped with devices on the sides and rear that make them more visible on the road. NHTSA ruling allows trailer manufacturers to install red and white reflective tape or film or mirrors. This tape is commonly referred to as DOT C2 reflective tape, so it is marked for easy identification.



DOT Certification Logo – The DOT-C2 designation is to appear on the tape at least every 12 inches. The characters should be at least 3 mm tall and stamped in indelible ink or an equivalent. The exact wording is below:



S5.7.1.5 Certification. The letters DOT-C2, DOT-C3, or DOT-C4, as appropriate, constituting a certification that the retroreflective sheeting conforms to the requirements of S5.7.1.2, shall appear at least once on the exposed surface of each white or red segment of retroreflective sheeting, and at least once every 300 mm on retroreflective sheeting that is white only. The characters shall be not less than 3 mm high, and shall be permanently stamped, etched, molded, or printed in indelible ink.
